Fire resistant Cable as AS3013

CU/MT/X-HF-110/HFS-110-TP 0.6/1kV Single core cable as AS/NZS3013

  • Project
    Energy & Utilities
  • Client
    Marjorie Harmon
  • Budget
    $8,697.75
  • Date
    04 Feb, 2020
  • Location
    Ozark (AL), 36360

Lorem Ipsum is simply dumm text of the printing and typesetting industry. Lorem Ipsum has been the indust make a type specimen book.

CU/MT/X-HF-110/HFS-110-TP 0.6/1kV Single core cable as AS/NZS3013

Application: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services

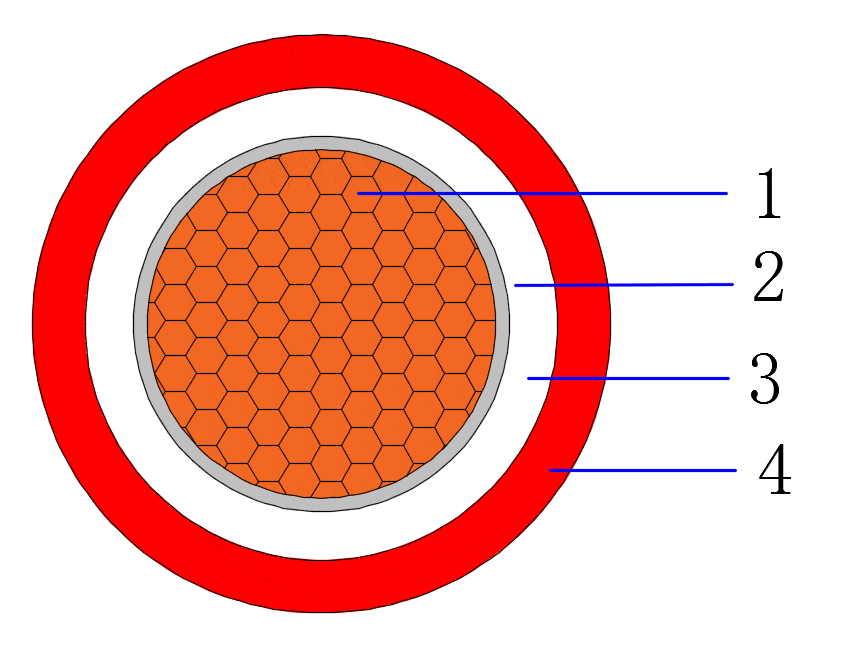

Construction:

1.    Conductor - Plain annealed class 5 flexible copper

2.    Fire Resistant layer - Mica Tape

3.    Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)

4.    Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)



Cross Section

1 core: 1.5~630mm2



Temperature characteristics:

Conductor operating temperature: -40~110

Min. temperatrue laying condition: 0



Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min



Color:

Insulation: White or according to customer requirements

Sheath: Red or according to customer requirements



Standard:

Cable design: AS/NZS5000.1

Conductor: AS/NZS 1125

Fire resistant : AS/NZS3013 (WS52W)
