UTP CAT5E
Application:
100Base-TX
100Base-T
100VG-AnyLAN
1000Base-T(Gigabit Ethernet)
1000Base-TX
ATM

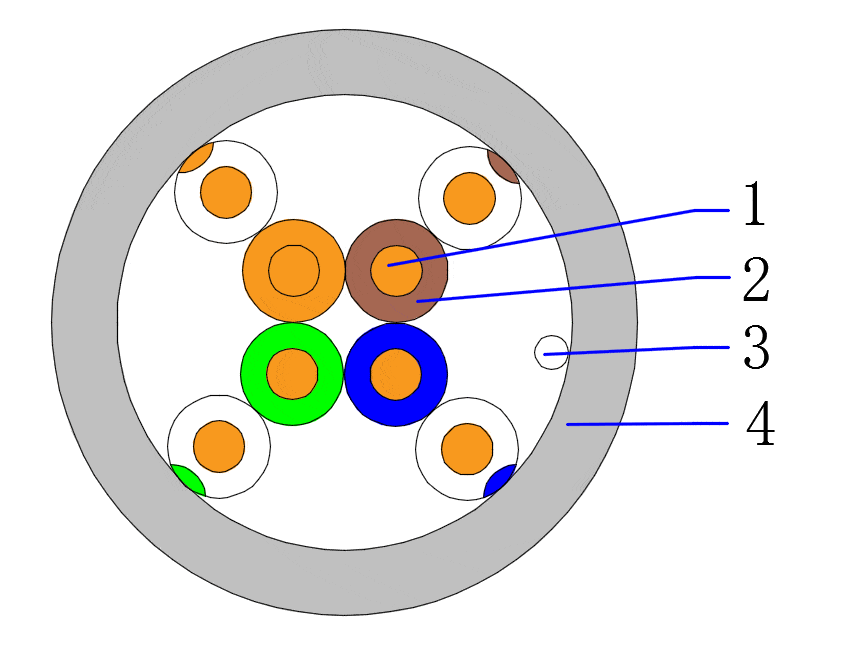

Construction：
1. Conductor - Bare solid copper, dia.0.5mm
2. Insulation - HDPE, dia.0.9mm
3. Rip cord
4. Jacket - PVC nominal thickness, 0.6mm
Temperature:
Rated temperature:60℃,75℃
Structure characteristics：
Approx. diameter of cable | Approx. weight of cable | Max. DC. Conductor Resistance at 20℃ | Max. DC conductor resistance unbalance | Min. insulation resistance | Max. capacitance | Impedance（1.0-100.0 MHz） | Delay Shew （1.0-100.0 MHz ） |
mm | kg/km | Ω/100m | % | MΩ﹒km | nF/100m | Ω | ns/100m |
5.1 | 32 | 9.5 | 5 | 5000 | 5.6 | 100±15 | ≤45 |
Technical Performance (100m)
Frequency | RL | ATT(20℃) | NEXT | PHASE DELAY | PSNEXT | ELFEXT | PSELFEXT |
(MHz) | ≥dB | ≤dB | ≥dB | ≤ns | ≥dB | ≥dB | ≥dB |
1 | 20 | 2 | 65.3 | 570 | 62.3 | 63.8 | 60.8 |
4 | 23 | 4.1 | 56.3 | 552 | 53.3 | 51.8 | 48.8 |
8 | 24.5 | 5.8 | 51.8 | 546.73 | 48.8 | 45.7 | 42.7 |
10 | 25 | 6.5 | 50.3 | 545.38 | 47.3 | 43.8 | 40.8 |
16 | 25 | 8.2 | 47.2 | 543 | 44.4 | 39.7 | 36.7 |
20 | 25 | 9.3 | 45.8 | 542.05 | 42.8 | 37.8 | 34.8 |
25 | 24.3 | 10.4 | 44.3 | 541.2 | 41.3 | 35.8 | 32.8 |
31.25 | 23.6 | 11.7 | 42.9 | 540.44 | 39.9 | 33.9 | 30.9 |
62.5 | 21.5 | 17 | 38.4 | 538.55 | 35.4 | 27.9 | 24.9 |
100 | 20.1 | 22 | 35.3 | 537.6 | 32.3 | 23.8 | 20.8 |
Core identification：
1.White/Blue - Blue
2.White/Orange - Orange
3.White/Green – Green
4.White/Brown – Brown
Sheath color：Grey
Standard：
ISO/IEC11801
ANSI/TIA-568-C.2
YD/T1019
