Application:

To be used for main power supply such as in low voltage distribution power networks， indoor and outdoor areas. It can be installed in ducts, in dry or wet locations, recommended for direct burial where require higher electrical and mechanical protection.

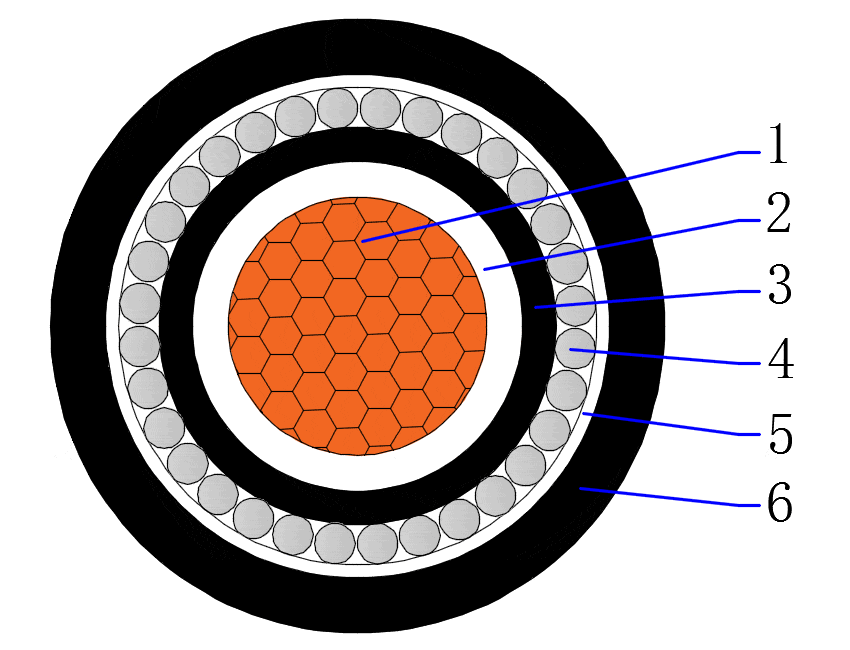

Construction:

1.    Conductor - Plain annealed class 2 stranded (compacted) copper

2.    Insulation - Polyvinyl chloride compound (PVC)

3.    Inner sheath - Polyvinyl chloride compound (PVC)

4.    Armor - Hard drawn aluminum wires

5.    Binder tape - Non-hygroscopic material tape

6.    Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section：

1C1.5~1C800mm2

Temperature characteristics:

Conductor operating temperature: -15℃~70℃

Min. temperatrue laying condition: 0℃

Conductor short-circuit operating temperature (5s): 160℃(≤300mm2) 140℃(>300mm2)

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: According to customer requirements

Outer sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-1 or AS/ZNS 5000.1

Conductor: IEC 60228 or AS/ZNS 1125
