Application:

To be used for power distribution in medium voltage, as transformer feeders in substations. In power plants, industrial and operation installations, in residential areas and mining installations, in dry or wet locations, fixed installed in air, directly buried in the ground or in ducts, where require higher mechanical protection.

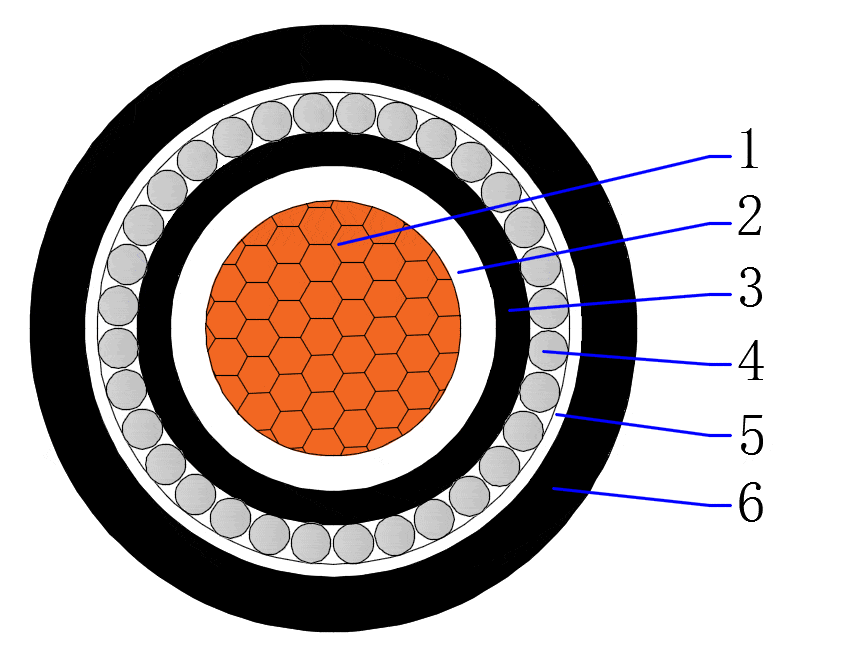

Construction:

1.    Conductor - Plain annealed class 2 compacted copper

2.    Conductor screen – Semi-conductive compound

3.    Insulation - Cross linked polyethylene (XLPE)

4.    Insulation screen - Semi-conductive compound

5.    Metallic screen - Plain annealed copper tape

6.    Binder tape - Non-hygroscopic material tape

7.    Separation layer - Polyvinyl chloride compound (PVC)

8.    Armor - Hard drawn aluminum wires

9.    Binder tape - Non-hygroscopic material tape

10.  Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section：

1 core; 35~800mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Conductor emergency operating temperature: 105℃

Conductor short-circuit operating temperature (5s): 250℃

Electrical Characteristics:

Rated voltage: 12/20(24) kV

AC High voltage test: 2.5U₀ for 30min

Partial Discharge at 1.73 U₀: 5PC or better

Color:

Core identification: Nature or according to the customer's request

Outer sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-2

Conductor: IEC 60228
