Application:

To be used for power distribution in medium voltage, as transformer feeders in substations. In power plants, industrial and operation installations, in residential areas and mining installations, in dry or wet locations.

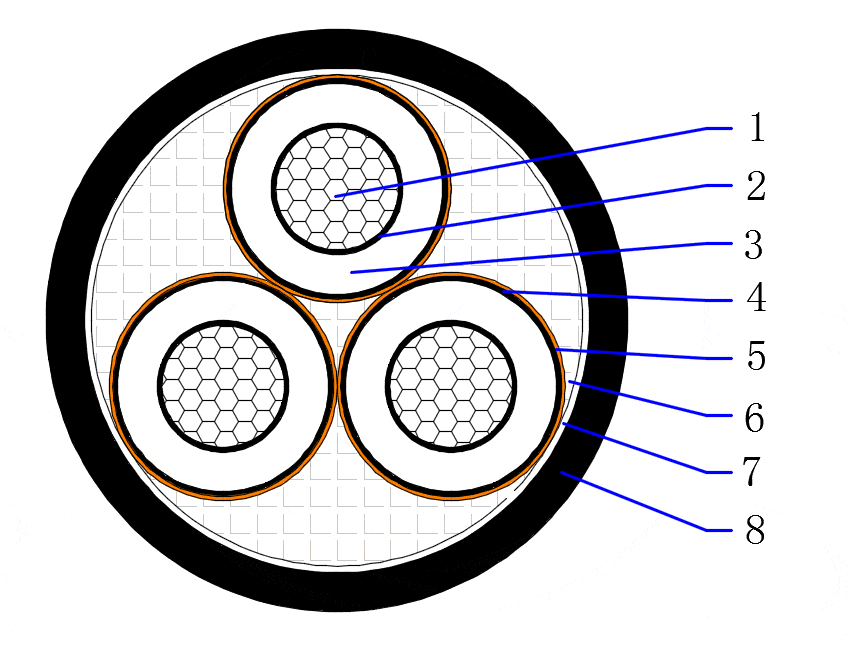

Construction:

1.    Conductor -Class 2 compacted aluminum

2.    Conductor screen – Semi-conductive compound

3.    Insulation - Cross linked polyethylene (XLPE)

4.    Insulation screen - Semi-conductive compound

5.    Metallic screen - Plain annealed copper tape

6.    Filler - Non-hygroscopic material

7.    Binder tape - Non-hygroscopic material tape

8.    Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section：

3 core; 50~400mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Conductor emergency operating temperature: 105℃

Conductor short-circuit operating temperature (5s): 250℃

Electrical Characteristics:

Rated voltage: 26/35(40.5) kV

AC High voltage test: 2.5U₀ for 30min

Partial Discharge at 1.73 U₀: 5PC or better

Color:

Core identification: Red, Yellow, Blue color strip along the phase core or according to the customer's request

Outer sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-2 & GB/T12706.3

Conductor: IEC 60228
