CU/PVC/ISOS/PVC 300/500V CU/PVC/OS/PVC 300/500V
PVC insulated PVC sheathed individual and collective screen, collective screen instrument cable with copper conductor

Application:

The instrument cable is suitable for the connection of electronic precision instruments, testing instruments and meters with high anti-interference performance requirements of rated voltage 300/500V and below. It can show superior signal transmission and anti-electromagnetic interference performance at high frequency. The products are widely used in electric power, metallurgy, petrochemical and other industries based on electronic computer automatic control system, computer distributed control system, automatic control system.

Construction:

1. Conductor - Plain annealed class 2 or class 5 copper conductor

2. Insulation - Polyvinyl chloride compound (PVC)

3. Binder tape - Polyester tape

4. Screen - Aluminum plastic composite tape with tinned copper drain wire

5 Binder tape - Polyester tape

6. Filler - Non-hygroscopic material(If need)

7. Binder tape - Polyester tape

8. Screen - Aluminum plastic composite tape with tinned copper drain wire

9. Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section：

1 pair and multi pairs ：0.5~2.5mm2

1 triple and multi triples ：0.5~2.5mm2

Temperature characteristics:

Conductor operating temperature: -15℃~70℃

Min. temperatrue laying condition: 0℃

Electrical Characteristics:

Rated voltage: 300/500V

High voltage test: 2kV / 1min

Color:

Insulation: According to customer requirements

Outer sheath: Black or according to customer requirements

Standard:

Cable design: EN50288-7

Conductor: EN 60228

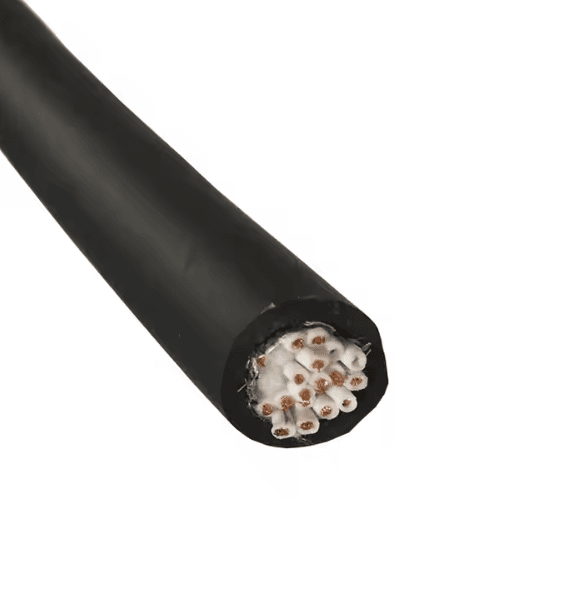

PVC Insulated Instrument Cable

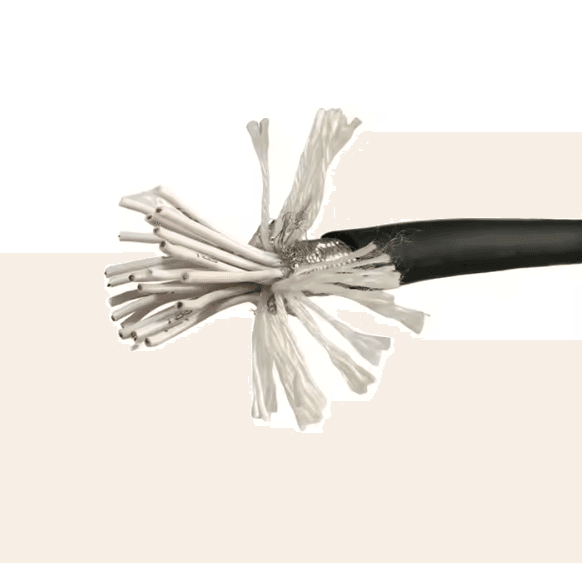

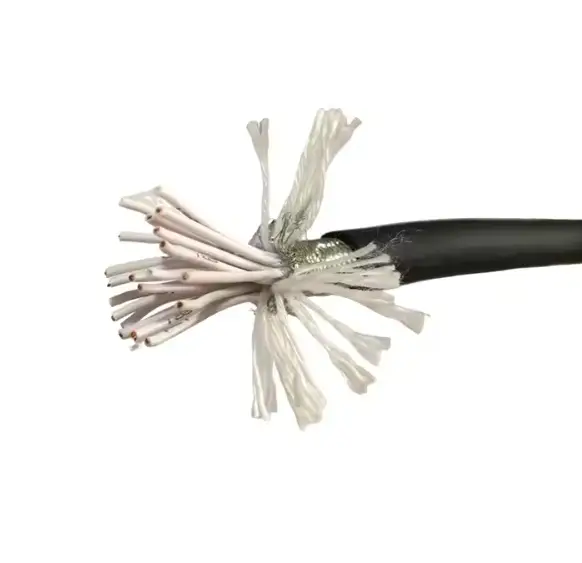

PE Insulated Instrument Cable

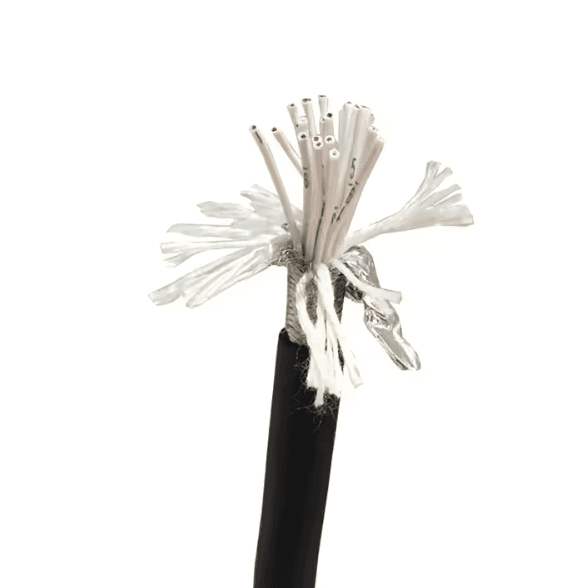

XLPE Insulated Instrument Cable
