UL2586 Multi core PVC insulated With or without shielding PVC sheath electronic wire

Application:

UL2586 electronic wire is in line with UL758 standard electrical equipment internal connection wire, widely used in electronic, home appliances and industrial equipment internal weak current wiring scene. The rated operating temperature is 105℃, the voltage is 600V or 1000V, and it has passed the UL VW-1 and CSA FT1 vertical fire resistance test.

Construction:

1. Conductor - Stranded annealed copper or tinned copper

2. Insulation - Chlorinated polyethylene compound (PVC)

3. Filler - Non-hygroscopic material

4. Binder tape - Non-hygroscopic material tape

5. Screen - Copper wire braided screen(Can provide aluminum - plastic composite tape +tinned copper drain wire screen according to customer requirements)

6. Jacket - Chlorinated polyethylene compound (PVC)

Cross Section：

2 cores and above : 24AWG and above

Temperature characteristics:

Conductor operating temperature:105℃

Minimum Bending Radius

fixed:6x Outer Ø

Electrical Characteristics:

Rated voltage: 600V or 1000V

High voltage test for 600V: 2AWG and smaller: 2kV / 1min

1~4/0AWG: 2.5kV/1min

250~500Kcmil: 3.0kV/1min

550~1000Kcmil: 3.5kV/1min

1100~2000Kcmil: 4.0kV/1min

High voltage test for 1000V: 3.0kV/1min

Flame retardant

UL VW-1 & CSA FT1

Color:

Insulation: According to customer requirements

Standard:

Cable design: UL758

Conductor: UL1581

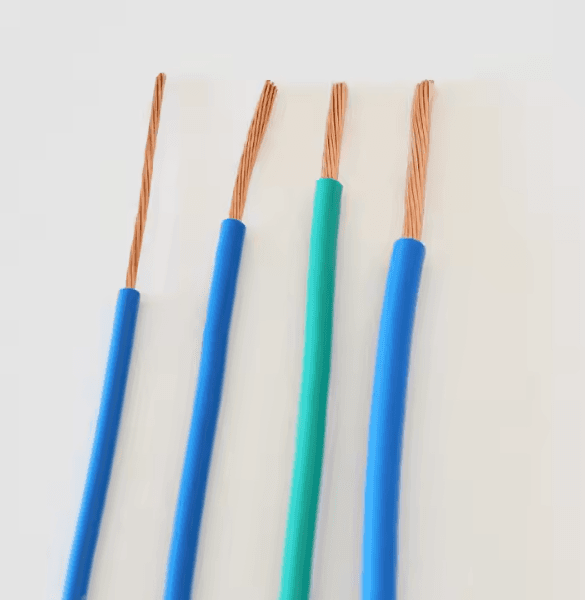

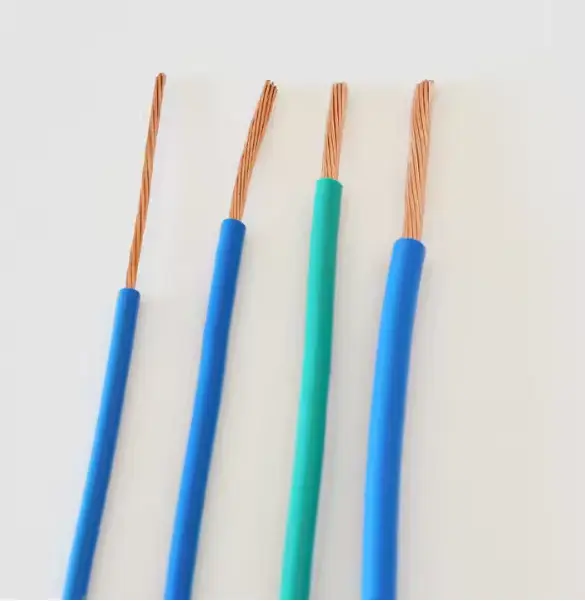

H05V-U H05V-R H05V-K

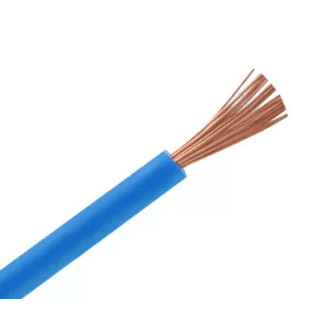

H07V-U H07V-R H07V-K

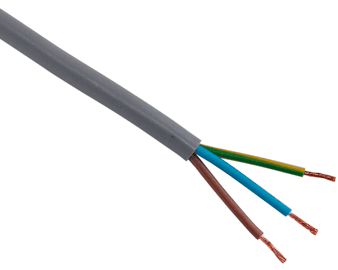

H05VV-F

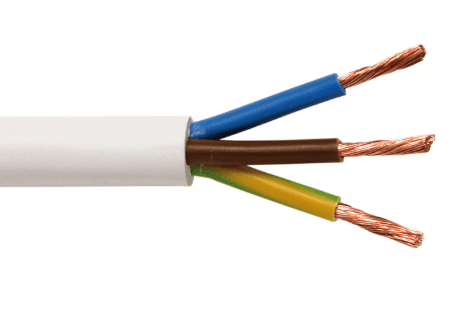

H03VV-F

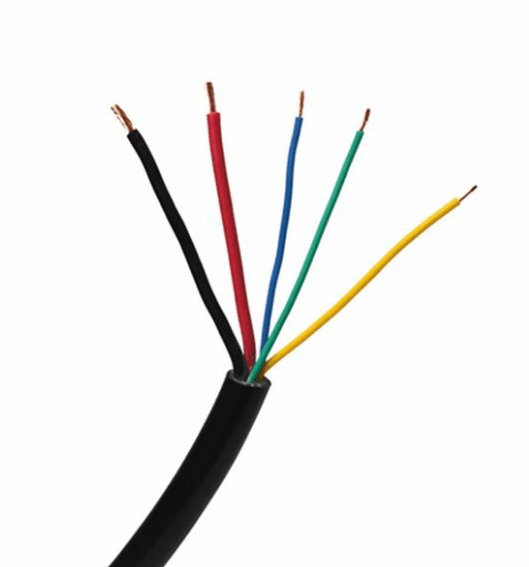

H05V2V2-F

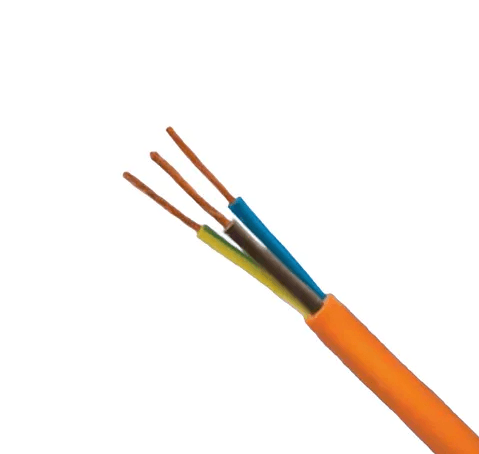

H03V2V2-F

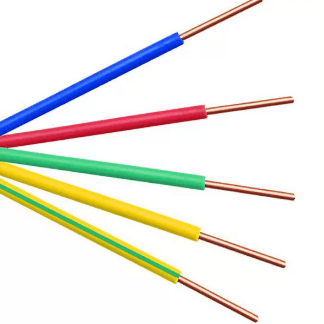

H07Z1-K H07Z1-R H07Z1-U (Type 1 and Type 2)

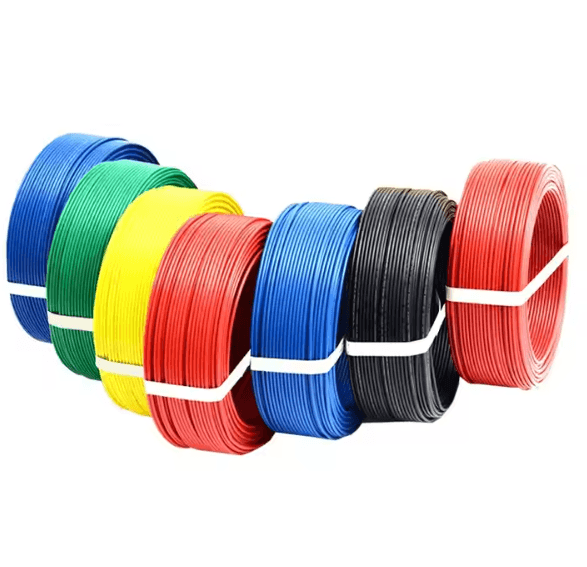

H05Z1-K H05Z1-R H05Z1-U

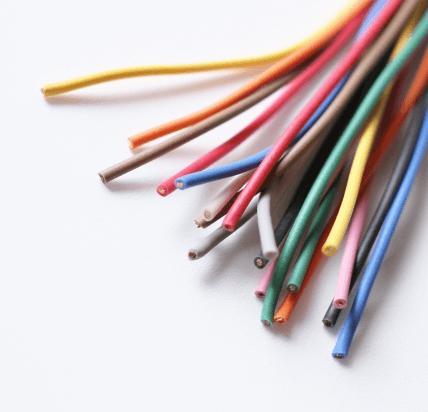

UL1007

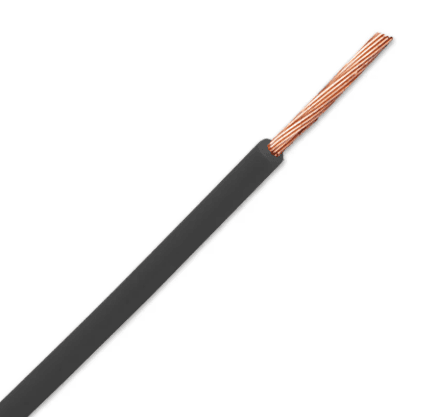

UL1015

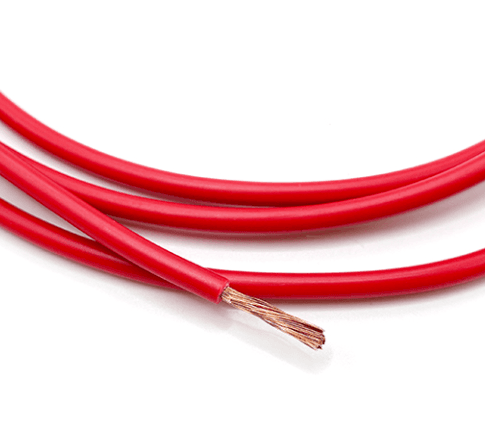

UL1032

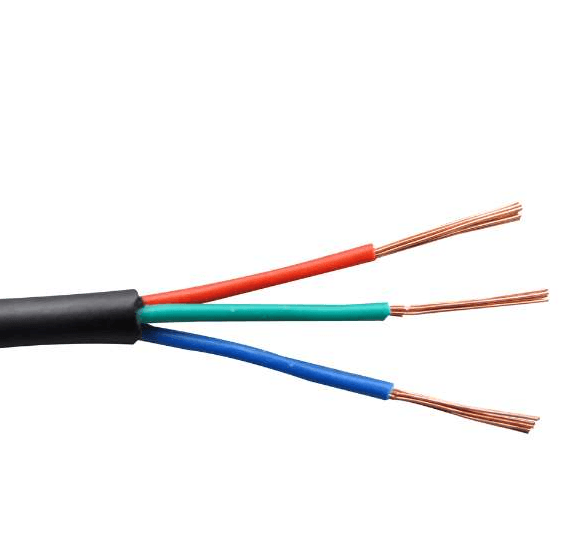

UL2464
