SOOW Multi core EP rubber insulated CPE rubber jacket cable

Application:

This product is suitable for industrial equipment, heavy tools, battery chargers, mobile lighting and power extension lines.Such as outdoor lighting connection (mine lamp, buried lamp, lawn lamp, street lamp, tunnel lamp...) , LED lighting connection (LED strip lights, work lights, roof lights...) Electric appliances and all kinds of general electric tools and equipment, suitable for outdoor, oily occasions, wet, cold and strong sun occasions.

Construction:

1. Conductor - Plain flexible annealed stranded copper

2. Insulation - (60℃, 75℃, 90℃)EP rubber

3. Filler - Flame retardant high temperature filling rope (If need)

4. Binder tape - Flame retardant tape

5. Outer jacket - (60℃, 75℃, 90℃) CPE rubber

Cross Section：

2C18AWG~2AWG

3C18AWG~2AWG

4C18AWG~2AWG

5C18AWG~5AWG

Temperature characteristics:

Conductor operating temperature: -40℃~+90℃

Operating ambient temperature:-20℃~+80℃

Minimum Bending Radius

6x Outer Ø

Flame retardant

FT2

Electrical Characteristics:

Rated voltage: 600V

18AWG~13AWG High voltage test: 2.0kV / 1min

12AWG~9AWG High voltage test: 3.0kV / 1min

8AWG~2AWG High voltage test: 4.0kV / 1min

Color:

Insulation: According to customer requirements

Standard:

Cable design: UL62 Flexible Cords and Cables

CSA C22.2 No. 49 Flexible Cords and Cables

H07RN-F

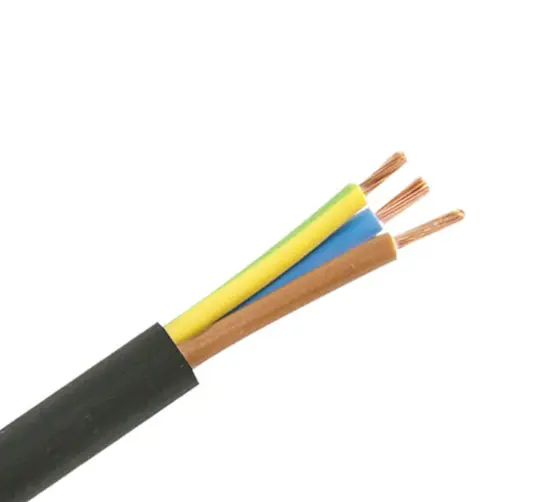

H05RN-F

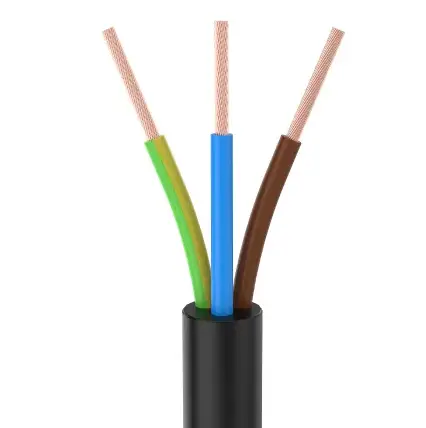

H07RN8-F

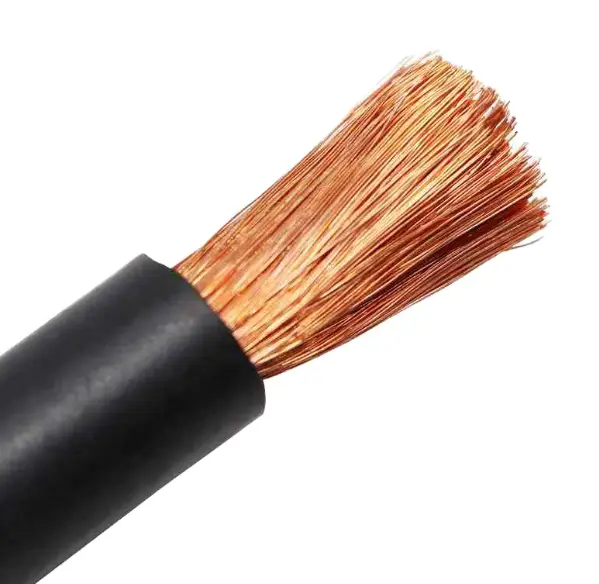

H01N2-D

SOOW

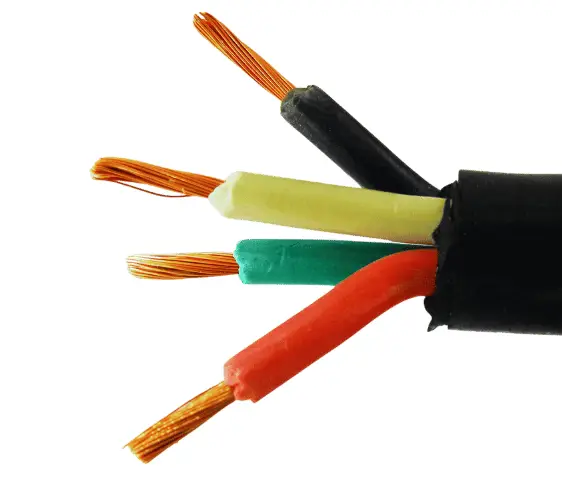

SJOOW

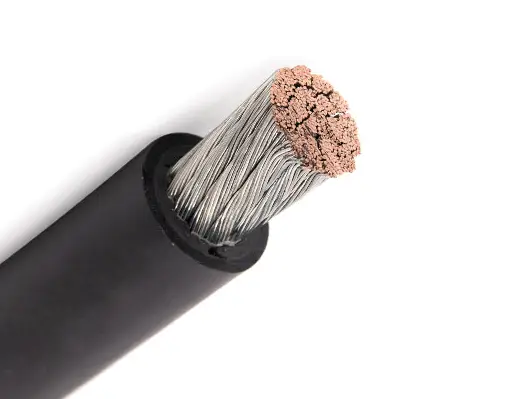

NSGAFÖU
