19/33(36)kV XLPE Insulated Power Cable (AS/ZNS Standard)

19/33(36)kV CU/XLPE/CWS/PVC/AWA/PVC Single core armored cable OR CU/XLPE/CWS/PVC/SWA/PVC Multi core armored cable

Single or Multi core XLPE insulated copper wire screen armored cable with copper conductor

Application:

To be used for power distribution in medium voltage, as transformer feeders in substations. In power plants, industrial and operation installations, in residential areas and mining installations, in dry or wet locations, fixed installed in air, directly buried in the ground or in ducts, where require higher mechanical protection.

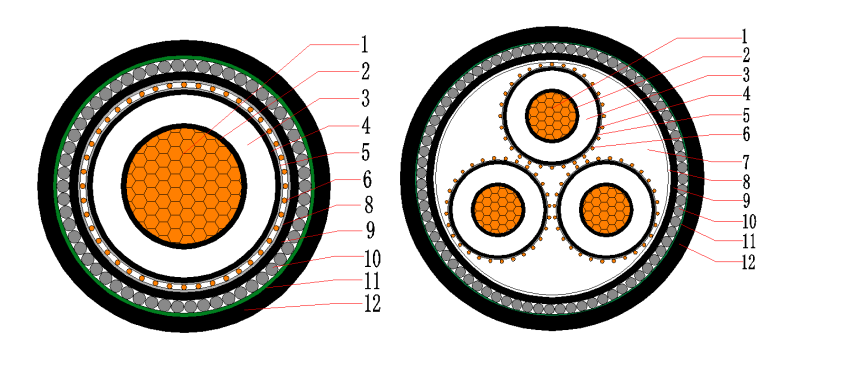

Construction:

1.    Conductor - Plain annealed class 2 compacted copper

2.    Conductor screen – Semi-conductive compound

3.    Insulation - Cross linked polyethylene (XLPE)

4.    Insulation screen - Semi-conductive compound

5.    Metallic screen - Plain annealed copper wire

6.    PP rope filler

7.  Binder tape - Non-hygroscopic material tape

8.    Separation layer - Polyvinyl chloride compound (PVC 5V-90)

9.    Armor - Hard drawn aluminum wires for single core or Galvanized steel wire for multi core

10.    Binder tape - Non-hygroscopic material tape

11.  Outer sheath - Polyvinyl chloride compound (PVC 5V-90)

Cross Section：

1 core; 50~1600mm2

3 core; 50~400mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Conductor emergency operating temperature: 105℃

Conductor short-circuit operating temperature (5s): 250℃

Electrical Characteristics:

Rated voltage: 19/33(36) kV

AC High voltage test: 63kV for 5min

Partial Discharge at 2 U₀: ≤20PC or 1.5U₀: ≤5PC

Color:

Core identification: Nature or Red、White、Blue color tape for three cores

Outer sheath: Black or according to customer requirements

Standard:

Cable design: AS/NZS 1429.1

Conductor: AS/NZS 1125
