H07RN-F Multi core EI4 rubber insulated EM2 rubber sheath cable
Application:
H07RN-F cable is suitable for the connection of all kinds of mobile electrical equipment with rated voltage not exceeding 450/750V. It can withstand large mechanical external force, and has certain outdoor weather resistance and oil pollution resistance.

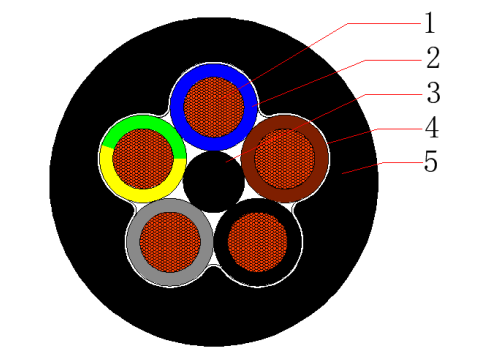

Construction:
1. Conductor - Plain flexible annealed class 5 copper
2. Insulation - EPR rubber(EI4)
3. Filler - Rubber(If need)
4. Binder tape - Non-hygroscopic material tape(If need)
5. Outer sheath - PCP or equivalent synthetic elastomer(EM2)
Cross Section：
1C1.5~630mm2
2C1~95mm2
3C1~300mm2
4C1~300mm2
5C1~95mm2
6, 7, 12, 18C1.5~4mm2
24, 36C1.5-2.5mm2
Temperature characteristics:
Conductor operating temperature: -25℃~60℃
Min. temperatrue laying condition: 0℃
Conductor short-circuit operating temperature (5s): 160℃
Minimum Bending Radius
Flexible:7.5x Outer Ø fixed:4x Outer Ø
Electrical Characteristics:
Rated voltage: 450/750V
High voltage test: 2.5kV / 5min
Color:
Insulation: According to customer requirements
Standard:
Cable design: EN50525-2-21
Conductor: EN 60228
Our cables are generally packed in wooden drums, steel-wooden drums, or steel drums. For cables of shorter lengths or smaller sizes, coil packaging on pallets is also available.
