H1Z2Z2-K

H1Z2Z2-K AC 1.0/1.0kV (DC 1.5kV) XLPO insulation XLPO sheath PV cable

Application:

H1Z2Z2-K cable is suitable for the series connection between PV modules and modules, the parallel connection between groups and between groups and DC distribution box (combiner box), and the connection between DC distribution box and inverter. Ac photovoltaic cable is suitable for the connection between inverter to step-up transformer, the connection between the step-up transformer to power distribution equipment, power distribution equipment to the power grid or the connection between the users.

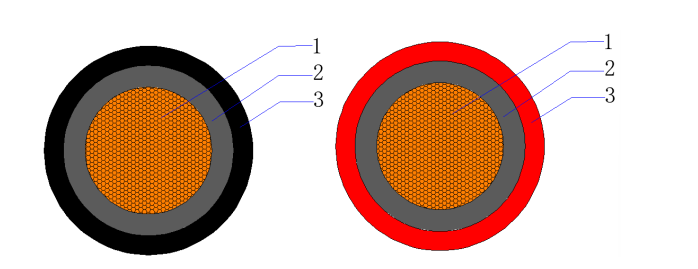

Construction:

1.  Conductor - Flexible tinned annealed class 5 copper

2.   Insulation - Cross-linked polyolefins (XLPO)

3.    Sheath - Cross-linked polyolefins (XLPO)

Cross Section：

1C1.5~240mm2

Temperature characteristics:

Maximum operating temperature of conductor：+90℃

For a maximum of 20 000 hours a max. conductor temperature of 120 °C

Ambient temperature：-40℃~+90℃

Cable laying temperature：≥-25℃

 Minimum Bending Radius

 6x Outer Ø

Electrical Characteristics:

Rated voltage: AC 1.0/1.0kV (DC 1.5kV)

High voltage test: 6.5kV / 5min

Color:

Insulation: Black

Sheath：Black or Red

Standard:

Cable design: EN50618
