H05VV-F Multi core PVC insulated PVC sheath cable
Application:
For medium mechanical stress for use in households and offices,including damp rooms;including household appliances such as refrigerators, hoovers and washing machines.

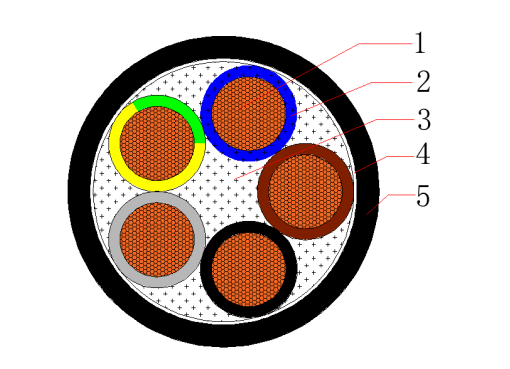

Construction:
1. Conductor - Plain flexible annealed class 5 copper
2. Insulation - Chlorinated polyethylene compound (PVC TI2)
3. Filler - Non-hygroscopic material
4. Binder tape - Non-hygroscopic material tape
5. Outer sheath - Polyvinyl chloride compound (PVC TM2)
Cross Section：
2C0.75~4mm2
3C0.75~4mm2
4C0.75~4mm2
5C0.75~4mm2
Temperature characteristics:
Conductor operating temperature: -15℃~70℃
Min. temperatrue laying condition: 0℃
Conductor short-circuit operating temperature (5s): 160℃
Minimum Bending Radius
Flexible:7.5x Outer Ø fixed:4x Outer Ø
Electrical Characteristics:
Rated voltage: 300/500V
High voltage test: 2.0kV / 5min
Color:
Insulation: According to customer requirements
Standard:
Cable design: EN50525-2-11
Conductor: EN 60228
Our cables are generally packed in wooden drums, steel-wooden drums, or steel drums. For cables of shorter lengths or smaller sizes, coil packaging on pallets is also available.
