H05V-U H05V-R H05V-K

H05V-U/H05V-R/H05V-K Single core PVC insulated wire

Application:

These cables are mainly installed in the interior of equipment and are used for lighting, dry rooms, production facilities, switches and switchboards under protected conditions.

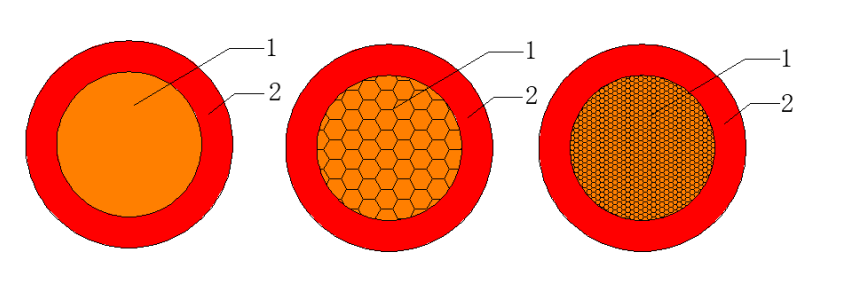

Construction:

1.  Conductor - Solid annealed copper(-U)

         - Plain stranded annealed class 2 copper(-R)

             - Plain flexible annealed class 5 copper(-K)

2.    Insulation -Chlorinated polyethylene compound (PVC TI1)

Cross Section：

1C0.5~1.0mm2

Temperature characteristics:

Conductor operating temperature: -15℃~70℃

Min. temperatrue laying condition: 0℃

Conductor short-circuit operating temperature (5s): 160℃

 Minimum Bending Radius

H05V-U   fixed:6x Outer Ø

H05V-R  fixed:6x Outer Ø

H05V-K  Flexible:7.5x Outer Ø       fixed:4x Outer Ø

Electrical Characteristics:

Rated voltage: 300/500V

High voltage test: 2kV / 5min

Color:

Insulation: According to customer requirements

Standard:

Cable design: EN50525-2-31

Conductor: EN 60228
