Cable NA2XFH 0.6/1kV

NA2XFH 0.6/1kV Multicore armored cable
Multicore XLPE insulated LSHF sheathed armored cable with aluminum conductor

Application:

To be used for main power supply, In low voltage distribution power networks, industrial installations, in buildings and operation stations. fixed installation in the ground or in concrete, in the cable trenches or cable, ducts, indoor or outdoor areas, in dry or wet locations.

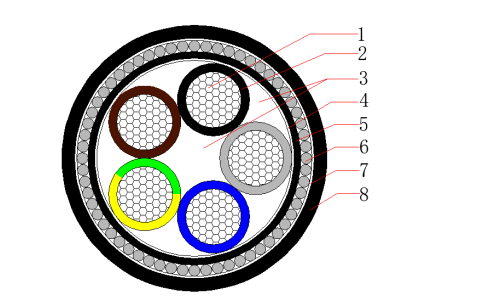

Construction:

1.    Conductor - class 2 stranded (compacted) aluminum

2.    Insulation - Cross-linked polyethylene (XLPE)

3.    Filler - Non-hygroscopic material

4.    Binder tape - Non-hygroscopic material tape

5.  Inner sheath - Low smoke halogen-free flame retardant polyolefin compound (LSHF)

6.  Armor - Galvanized steel wire

7.    Outer sheath - Low smoke halogen-free flame retardant polyolefin compound (LSHF)

Cross Section：

2C10~2C400mm2

3C10~3C400mm2

4C10~4C400mm2

5C10~5C400mm2

2C+E10~2C+E400mm2

3C+E10~3C+E400mm2

4C+E10~4C+E400mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Conductor short-circuit operating temperature (5s): 250℃

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: According to customer requirements

Outer sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-1

Conductor: IEC 60228

Flame retardant：IEC60332-3-24 Cat.C

Smoke density: IEC 61034

Halogen acid gas and PH: IEC60754
