U-1000 R2V

U-1000 R2V  Single or Multicore unarmored cable
Single or Multicore XLPE insulated PVC sheathed unarmored cable with copper conductor

Application:

U-1000 R2V is suitable for all types of low-voltage industrial connections, in urban power grids, building installations, etc., especially in the case of high temperature application resistance to solar radiation.Can be used without additional outdoor mechanical protection, fixed to the wall or raceway walkway.Can be laid in the underground, built by the brick mechanical protection.It is not recommended to lay underground cables for more than two months of flooding per year.Appropriate mechanical protection can be used in areas vulnerable to explosion hazards, but in this case, the allowable current load is reduced by 15%.It can be used in environments where the temperature drops to -25℃

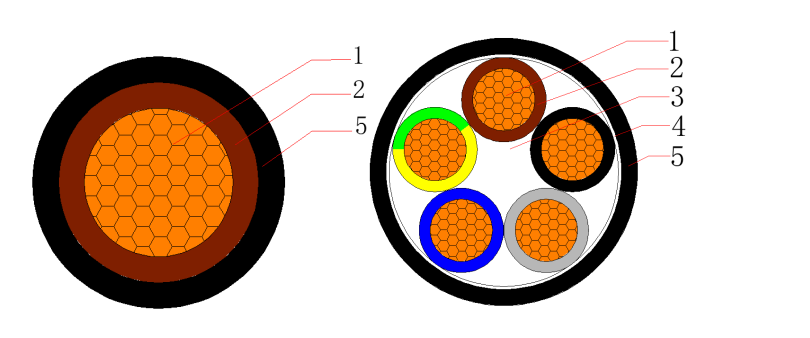

Construction:

1.    Conductor - Plain annealed class 2 stranded (compacted) copper

2.    Insulation -Cross-linked polyethylene compound (XLPE)

3.    Filler - Non-hygroscopic material

4.    Binder tape - Non-hygroscopic material tape

5.    Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section：

1C1.5~630mm2

2C1.5~2C35mm2

3C1.5~3C300mm2

4C1.5~4C300mm2

5C1.5~5C35mm2

3C+E50~3C+E240mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Conductor short-circuit operating temperature (5s): 250℃

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: According to customer requirements

Outer sheath: Black or according to customer requirements

Standard:

Cable design: NF C-32-321
