RZ1-K 0.6/1kV

RZ1-K 0.6/1kV Single or Multicore unarmored cable
Single or Multicore XLPE insulated LSHF sheathed unarmored cable with copper conductor

Application:

These cables are indicated for the transport and distribution of low voltage electricity. Recommended for industrial connections, service connections, internal distribution and other permanent installations. Suitable for indoor and outdoor installations, on uncovered cable trays, in tubes and buried.Given their great flexibility they are very appropriate for complex and extremely difficult installations.

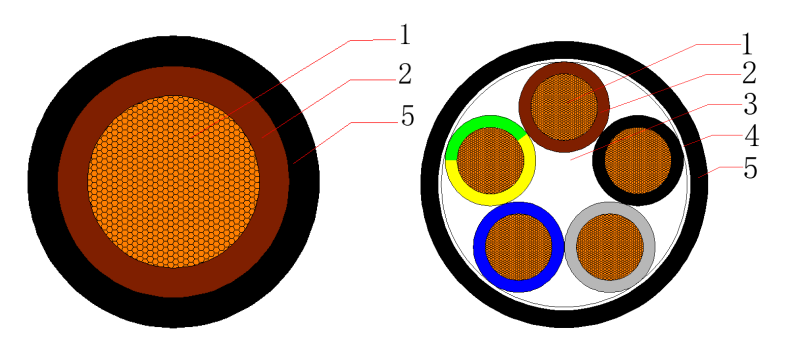

Construction:

1.    Conductor - Plain flexible annealed class 5 copper

2.    Insulation -Cross-linked polyethylene compound (XLPE)

3.    Filler - Non-hygroscopic material

4.    Binder tape - Non-hygroscopic material tape

5.    Outer sheath - Low smoke halogen-free flame retardant polyolefin compound (LSHF)

Cross Section：

1C1.5~630mm2

2C1.5~2C400mm2

3C1.5~3C400mm2

4C1.5~4C400mm2

5C1.5~5C400mm2

2C+E2.5~2C+E400mm2

3C+E2.5~3C+E400mm2

4C+E2.5~4C+E400mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Conductor short-circuit operating temperature (5s): 250℃

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: According to customer requirements

Outer sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-1

Conductor: IEC 60228

Flame retardant：IEC60332-3-24 Cat.C

Smoke density: IEC 61034

Halogen acid gas and PH: IEC60754
