PVC Insulated Power Cables 0.6/1KV

CU/PVC/PVC 0.6/1kV Multicore unarmored cable
Multicore PVC insulated PVC sheathed unarmored cable with copper conductor

Application:

To be used for main power supply, In low voltage distribution power networks, industrial installations, in buildings and operation stations. fixed installation in the ground or in concrete, in the cable trenches or cable, ducts, indoor or outdoor areas, in dry or wet locations.

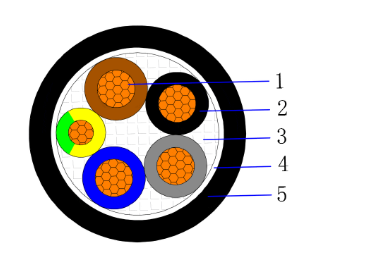

Construction:

1.    Conductor - Plain annealed class 2 stranded (compacted) copper

2.    Insulation - Polyvinyl chloride compound (PVC)

3.    Filler - Non-hygroscopic material

4.    Binder tape - Non-hygroscopic material tape

5.    Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section：

2C1.5~2C400mm2

3C1.5~3C400mm2

4C1.5~4C400mm2

5C1.5~5C400mm2

2C+E2.5~2C+E400mm2

3C+E2.5~3C+E400mm2

4C+E2.5~4C+E400mm2

Temperature characteristics:

Conductor operating temperature: -15℃~70℃

Min. temperatrue laying condition: 0℃

Conductor short-circuit operating temperature (5s): 160℃(≤300mm2) 140℃(>300mm2)

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: According to customer requirements

Outer sheath: Black or orange or according to customer requirements

Standard:

Cable design: IEC 60502-1 or AS/ZNS 5000.1

Conductor: IEC 60228 or AS/ZNS 1125
